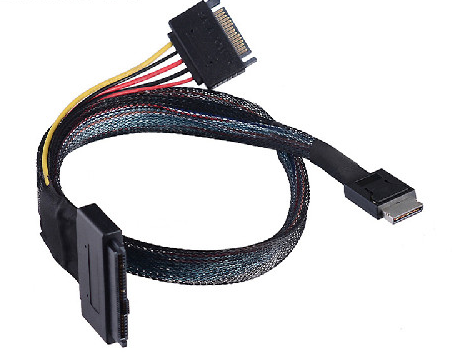

Applications

1. Servers

2. Data Storage

3. Desktops

4. Workstation

Features and Benefits

1. Data speed: 8GT/s

2. Meet OCuLink specification.

Mechanical Performance

1. Mating Force (w/out latch): 2~20N.

Connector W/Passive latch: 10~40N

2. Un-mating Force (w/out latch): 1~16N

Connector W/Passive latch: 8~25N

3. Rated durability cycles: 50 cycles MIN.

Electrical Performance

1. Voltage: 30VDC per contact

30mohm max. initial, 15mohm maximum after stress test.

2. Dielectric Withstanding Voltage: 250 VDC minimum for 100 ms

3. Insulation Resistance: 100 MΩ minimum between adjacent terminal

Signal Integrity

1. Mated Connector Impedance: 85 ohm±15%

2. Common Mode Impedance: meet PCIe Gen3 specification

3. Insertion loss: meet PCIe Gen3 specification,

4. Maximum Crosstalk: meet PCIe Gen3 specification

Product Environmental Compliance

RoHS2.0: Compliant

China RoHS: Yes

REACH SVHC: Yes

Low-Halogen Status: Not Reviewed
