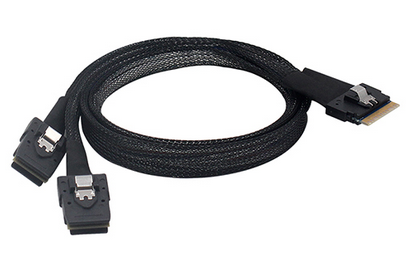

Application field

1. Server

2. Data storage

3. Workstation

Features and advantages

1. Smaller size connectors and cables save equipment space

2. Provide 8-channel signal transmission according to industry standards

3. Data speed: each channel supports UPI 11.2GT/s, SAS4.0 24Gbps, OpenCAPI 25Gbps and PCIe 4.0 16Gbps

4. Comply with SAS4.0 and SlimSAS SFF-8654 specifications

Mechanical behavior

1. Combining force: 55.5N max

2. Releasing force: 49N max

3. Rated durability period: at least 250 cycles

Electrical performance

1. Voltage: 30VDC per contact SlimSAS 8i plug: maximum 80mohm initial, maximum 20mohm after pressure test.

2. Dielectric withstand voltage: minimum 300 VDC, lasting 100 ms

3. Insulation resistance: the minimum value between adjacent pins is 10MΩ

 Signal integrity

1. Impedance of mating connector: 100 +/- 10% ohm

2. Common mode impedance: in line with SAS4.0 specifications

3. Insertion loss: in line with SAS4.0 specification,

4. Maximum crosstalk: in line with SAS4.0 specifications

Environmental compliance

Comply with RoHS2.0 standard

China RoHS: Yes

Reach SVHC: Yes
