Application field
1. Server
2. Data storage
3. Workstation
Features and advantages
1. Smaller size connectors and cables save equipment space
2. Provide four-channel signal transmission according to industry standards
3. Data speed: each channel supports UPI 11.2Gbps, SAS4.0 24Gbps, 25Gbps and PCIe 4.0 16Gbps
4. Comply with SAS4.0 and SlimSAS SFF-8654 specifications
Mechanical behavior

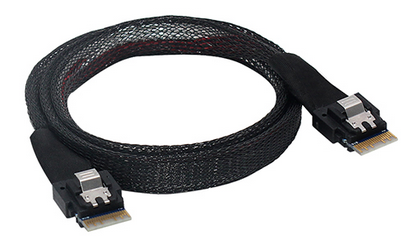

SlimSAS 4i plug
1. Combining force: 55.5N max
2. Releasing force: 49N max
3. Rated durability period: at least 250 cycles
Electrical performance
1. Voltage: 30VDC per contact SlimSAS 4i plug: maximum 80mohm initial, maximum 20mohm after pressure test.
2. Dielectric withstand voltage: minimum 300 VDC, lasting 100 ms
3. Insulation resistance: the minimum value between adjacent pins is 10MΩ
Signal integrity
1. Impedance of mating connector: 100 +/- 10% ohm
2. Common mode impedance: in line with SAS4.0 specifications
3. Insertion loss: in line with SAS4.0 specification,
4. Maximum crosstalk: in line with SAS4.0 specifications
Product environmental compliance
Comply with RoHS2.0 standard
China RoHS: Yes
Reach SVHC: Yes
Low halogen status: unaudited
