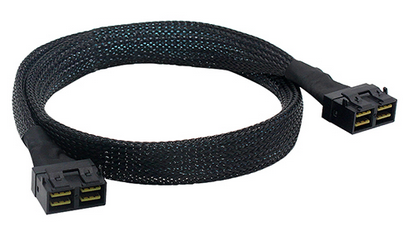

Application field
Data/communication
1. RAID (Redundant Array of Independent Disks)
2. Workstation
3. Rack server
4. Server
5. Storage shelf
Features and advantages
1. Transmission rate 12 Gbps
2. Comply with SAS3.0 specification.
Mechanical behavior
Fit and release
Conditions: EIA 364-13. Insert and unplug at a speed of 25mm/min.
Combining force: 100N max.
Uncoupling force: 50N minimum.
Electrical performance
1. When the contact current rating is matched, each pin has a maximum of 0.5A.
2. When the rated voltage is matched or not, each contact is 30VAC.
3. The maximum contact resistance is 30mohm at the beginning and 15mohm after the pressure test.
4. The dielectric withstand voltage is 500 VAC for 1 minute without breakdown.
5. The minimum insulation resistance is 1000 Mohm.
Signal integrity
1. Impedance of mating connector: 100 ohm±15%
2. Absolute cable impedance: 100 ohm±10%
3. Cable pair matching: ±5 ohm
4. Common mode impedance: 25 to 40 ohms
5. Insertion loss: maximum -6dB, maximum 4.5Ghz; maximum 9dB, maximum 11dB.
6. Crosstalk: -35 dB, up to 6Ghz.
Product environmental compliance
RoHS 2.0 compliant: RoHS 2.0 compliant
China RoHS: Yes
Reach SVHC: Yes
